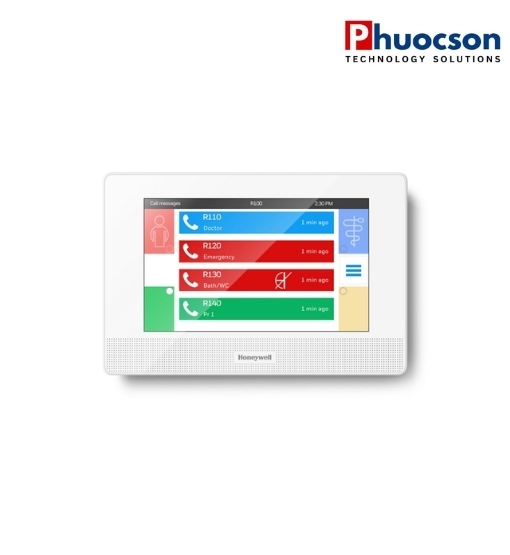

Central Nurse Station Display Unit (Master Console)

Executive Summary: The Digital Hub for Patient Call Management

The Central Nurse Station Display Unit is the fundamental interface and control hub for the entire Nurse Call System (often the Master Console or Management Terminal). Positioned strategically at the nursing station, this unit receives, processes, prioritizes, and logs all active patient calls, emergency alerts, and service requests from across the facility.

Its primary function is to transform real-time patient needs into actionable data for nursing staff, ensuring the fastest, most prioritized response possible. This is not merely a screen; it is a compliant, high-availability system that logs all activities for accountability and quality assurance

Key Differentiators: Prioritization and Data Accountability

1. Intelligent Call Prioritization (Triage)

The system is designed to provide immediate visual and audible distinction between call types, a crucial feature for effective staff deployment.

• Color-Coded and Auditory Alarms: Incoming calls are instantly categorized and displayed using distinct color codes (e.g., Red for Emergency, Yellow for Standard, Green for Service) and varied acoustic signals (different tones or volumes). This enables nurses to perform immediate triage—determining urgency without manual investigation.

• Sequential and Priority Display: The console manages multiple simultaneous calls, displaying them in order of urgency, followed by arrival time, ensuring no critical alert is overlooked, even during high-traffic periods.

2. Communication and System Control

As the Master Console, the unit facilitates direct staff action and external communication.

• Two-Way Speech (If equipped): Many advanced models enable two-way speech communication directly with the patient terminal (bed unit), allowing nurses to quickly assess the situation verbally before deploying staff.

• System Status Overview: Provides a high-level view of the entire network, including the status of all rooms, zones, and essential components (like power supply and data bus integrity), critical for system fault monitoring.

3. Data Logging and Quality Assurance (QA)

The Master Console serves as the mandatory recording device for system accountability.

• Automated Event Logging: Every action, including the time a call was initiated, the time a nurse responded, and the time the call was canceled, is automatically logged with a timestamp.

• Report Generation: This logged data is vital for generating reports required for internal auditing, resource allocation analysis, and external regulatory compliance (QA and VDE 0834). The data proves that care protocols and response times are being met.

Architectural Fit: Centralized Management

The Central Display Unit is the fixed management interface for the entire wired or IP-based Nurse Call System architecture.

• DBUS Integration: It connects directly to the system's Data Bus (DBUS) or IP network, serving as the central coordinator for all room terminals, corridor lights, and ancillary devices.

• High Availability: Designed for continuous operation (24/7/365), often featuring redundant power options or specialized components to ensure the system is always active and monitoring.

Technical Specifications (General Master Console Features)
