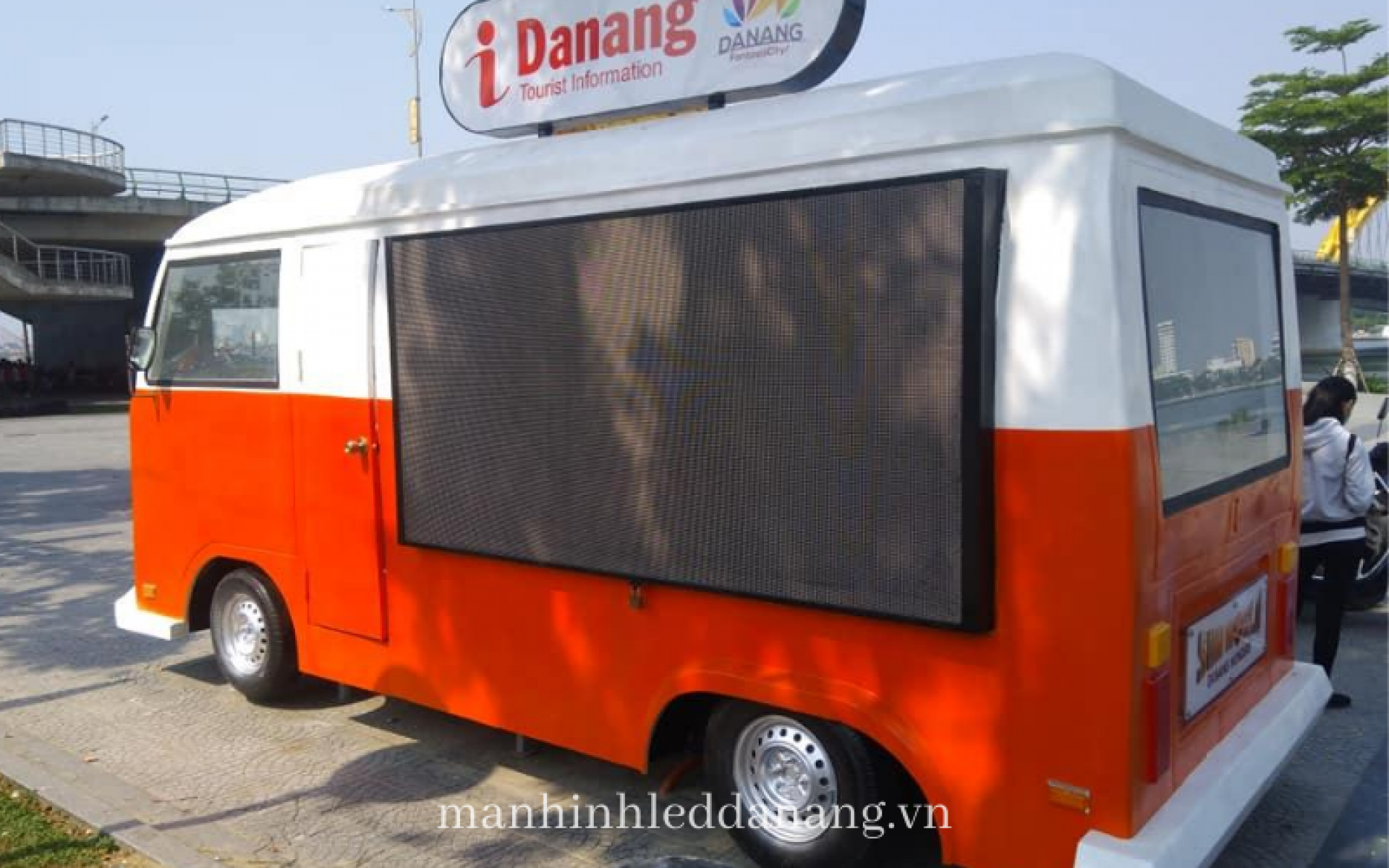

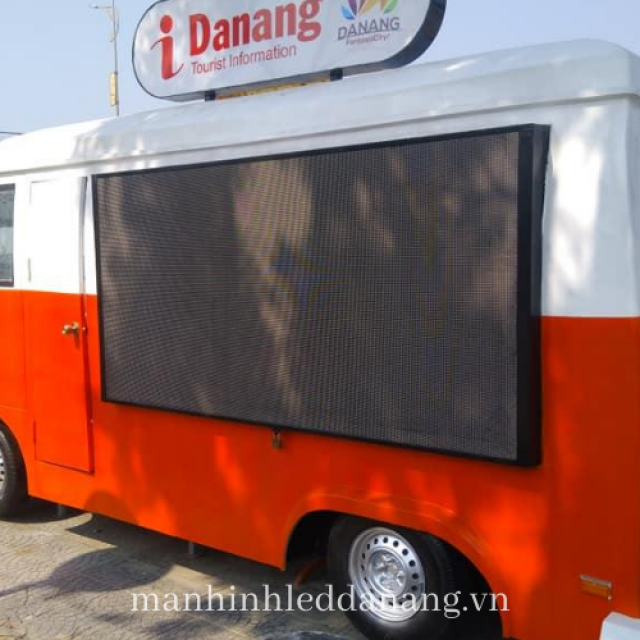

MÀN HÌNH LED P6 NGOÀI TRỜI - XE BÁN HÀNG LƯU ĐỘNG
Contact
PHUOC SON TECHNICAL TRADING & SERVICES CO., LTD
Sales Consultation: +84 905 210 146 - +84 935 632 123
THÔNG SỐ KỸ THUẬT TẤM LED
| Pixel pitch | 6mm | |
| Pixel Density | 27778 dots/m² | |
| Pixel configuration | 1R1G1B | |
| LED type | SMD2727 | |
| Module size | W192 *H192mm | |
| Module weight | 282.5±5g | |
| Module resolution | W32*H32 dots | |
| Module QTY/ m² | 27.127 pcs/ m² | |
| Min. Viewing Distance | ≥6m | |
| Brightness | ≥5000 cd/m² | |
| Viewing Angle | H≥120° V≥120° | |
| Driving Mode | 1/8 scan constant current | |
| Interface | HUB75 | |
| Input voltage | 6 V | |
| Max. Power Consumption | 800 w/m² | |
| Avg. Power Consumption | 400 w/m² | |
| Max. Current | 5 A | |
| Gray Level | 16bits (65536) | |
| Vedio frame rate | 60 frames/s | |
| Refresh Rate | ≥1920Hz | |
| Defective Dots Rate | ＜0.0001 (LED industry standard: ≤ 0.0003) | |
| Decay Rate | ≤5%/year | |
| Brightness Conformity | ＞95% | |
| Colors | 65536³ | |
| MTBF | ≥10000 hours | |
| Lifespan | ≥100000 hours | |
| Protective function | Over-heat/Over-load /Power-down /Power-leakage /Lightning-protection etc. | |
| Operating Temperature | -40℃～+80℃ | |
| Operating Humidity | 10-80% no condensation | |
| Storage Temperature | -50℃～+80℃ | |
| Storage Humidity | 10-85% no condensation | |
