P3.91-7.82 INDOOR TRANSPARENT LED SCREEN
Contact
PHUOC SON TECHNICAL TRADING & SERVICES CO., LTD
Sales Consultation: +84 905 210 146 - +84 935 632 123
P3.91-7.82 INDOOR TRANSPARENT LED SCREEN: THE ULTIMATE GLASS WALL DISPLAY
A P3.91-7.82 indoor transparent LED screen is an innovative display solution designed to provide complete transparency while showcasing vibrant visual content. This screen ensures that people can see clearly through it from behind, allowing natural light to enter the space. Simultaneously, it offers all the features of a conventional LED screen, capable of displaying both static and dynamic images, including logos, brands, slogans, and full-motion advertisements.
IDEAL APPLICATIONS

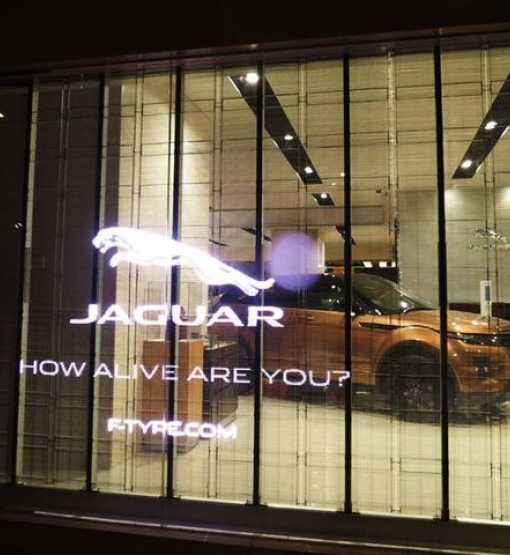

This versatile display is specifically designed for installation on the inside of glass walls in buildings and stores. With a scalable, modular design, the screen can be customized to fit any size, from just 2m² up to hundreds of square meters, making it a perfect solution for creating high-impact, futuristic displays.
TECHNICAL SPECIFICATIONS
| Pixel Pitch | 3.91mm (H) x 7.82mm (V) |
| LED Type | SMD 1921 |
| Module Size (W x H) | 500 x 125 mm |
| Pixel Resolution/Module (W x H) | 128 x 16 |
| Pixel Density | 32,768 dots/m² |
| Scanning Method | 1/8 Scan |
| Protection | Black-out mask, high contrast screen |
| Module Count/Cabinet | 2 (W) x 4 (H) |
| Cabinet Size (W x H x D) | 1000 x 800 x 75mm |
| Cabinet Resolution | 256 x 64 pixels |
| Cabinet Material | Die-cast aluminum |
| Cabinet Weight | 6 kg |
| Brightness | ≥4500 cd/m² |
| Optimal Viewing Angle (H/V) | 140° / 140° |
| Average Power Consumption | 220 W/m² |
| Maximum Power Consumption | 800 W/m² |
| Grayscale | 8 - 16 bits |
| Number of Colors | Min. ≥ 16.7 million, Max. ≤ 281 trillion |
| Refresh Rate | ≥3000Hz |
| Frame Rate | 60Hz |
| Dead Pixel Rate | 0.3‰ |
| Lifespan | 100,000 hours |
| Working Voltage | AC220V/50Hz |
| Working Temperature | -10oC to 50oC |
| Working Humidity | 10% - 90% |
| Protection Rating | IP33 |
| Control Distance | Ethernet ≤ 100m, Fiber Optic < 10km |
| Video Input | VGA, DVI, HDMI |
| Compatible OS | Windows |
| Receiving Card | NOVA / LINSN |
| Sending Card | NOVA / LINSN |
| Power Supply | AC-DC 5V-60A |
For a display solution that combines stunning visuals with architectural elegance, the P3.91-7.82 transparent LED screen is an ideal choice. Contact us today to learn how this innovative technology can transform your space.
